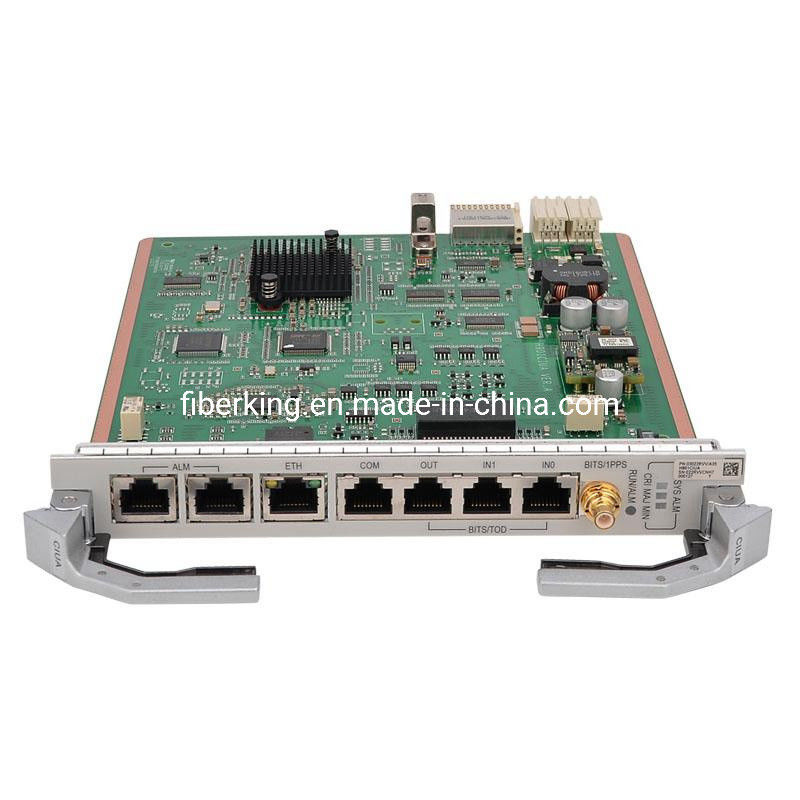

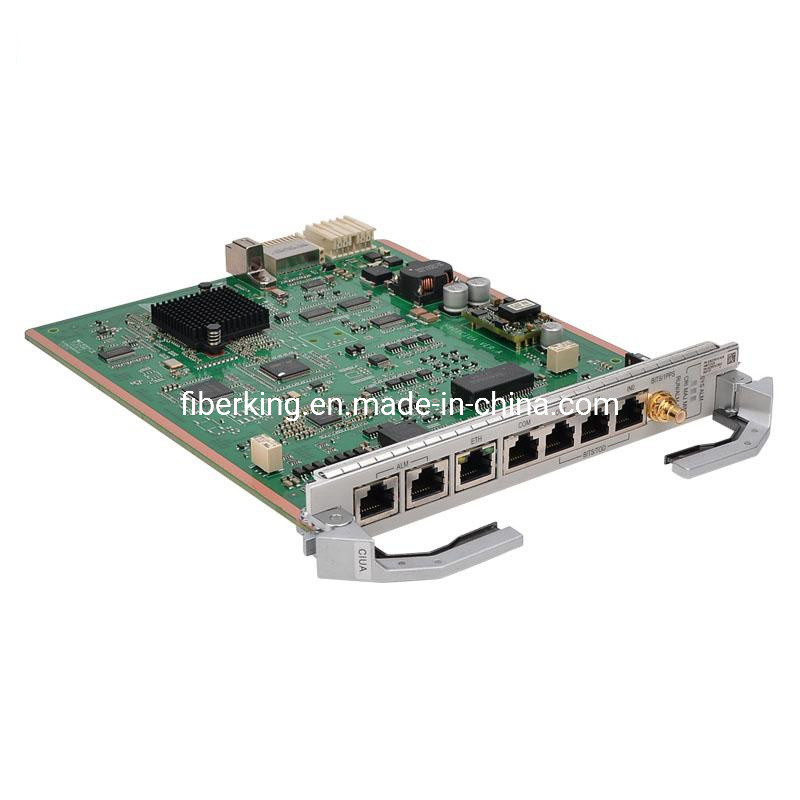

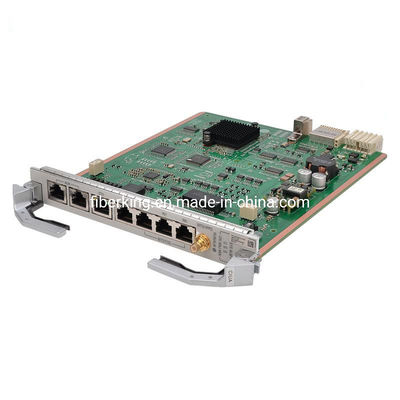

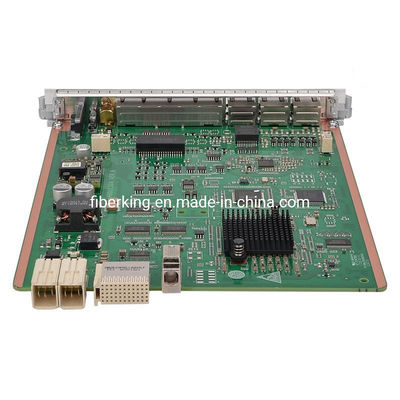

H901CIUA General Interface Board for Huawei Ma5800 Olt
H901CIUA General Interface Board for Huawei Ma5800 Olt H901CIUA General Interface Board for Huawei Ma5800 Olt H901CIUA General Interface Board for Huawei Ma5800 Olt H901CIUA General Interface Board for Huawei Ma5800 Olt H901CIUA General Interface Board for Huawei Ma5800 Olt
Contactez

H901CIUA General Interface Board for Huawei Ma5800 Olt

Quantité de commande min : 50pcs Prix : Negociatable
Détails d'emballage : Boîte de carton Délai de livraison : 7-15days
Conditions de paiement : T/T, Western Union Capacité d'approvisionnement : 10000pcs/week
Lieu d'origine: LA CHINE Certification: CE ROHS Anatel

Détail Infomation
Modèle non.: H901CIUA 1PPS+ Tod Output: Soutenu
Puissance: Charge statique : maximum 6W : 7W 1PPS+ Tod Inputs: 2 entrées
Le peu entre/sortie: 2 Inputs/1output Marque déposée: hongking
Paquet de transport: Boîte de carton Spécifications: 45cm * 32cm * 8cm
Origine: NC Code de HS: 8517623290
Port: Yantian, Chine type: Le général de H901ciua connectent le conseil
Câblage des dispositifs: ODF Certification: ISO
Condition: Nouveau Type d'entrées de peu: 2 Mbits/s, 2 mégahertz
Type de sorties de peu: 2mbit/S, 2MHz

Description de produit

Product Description

Customer Question & Answer
Ask something for more details

The H901CIUA board is a General Interface Board. It provides the input and output clock source for the system and supports functions such as input and output of alarm digital parameters.

Feature and Specifications

The H901CIUA board supports the following functions:
Seven inputs of alarm digital parameters and one output of digital controlling parameters
Two inputs of 2 Mbit/s or 2 MHz BITS clock signals
Two inputs of 1 PPS+TOD time signals
One output of 2 Mbit/s or 2 MHz clock signals
One output of 1PPS time signals
External monitoring Ethernet port to transparently transmit monitored data
RS485 port to transparently transmit data
Multiple working modes, such as tracing, holdover, and free-run

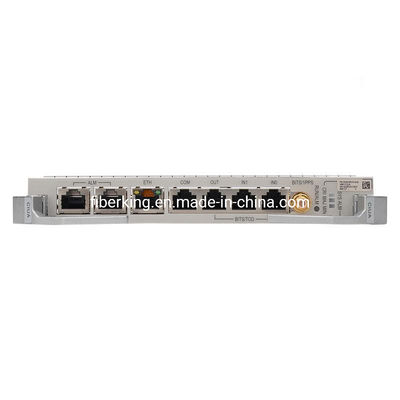

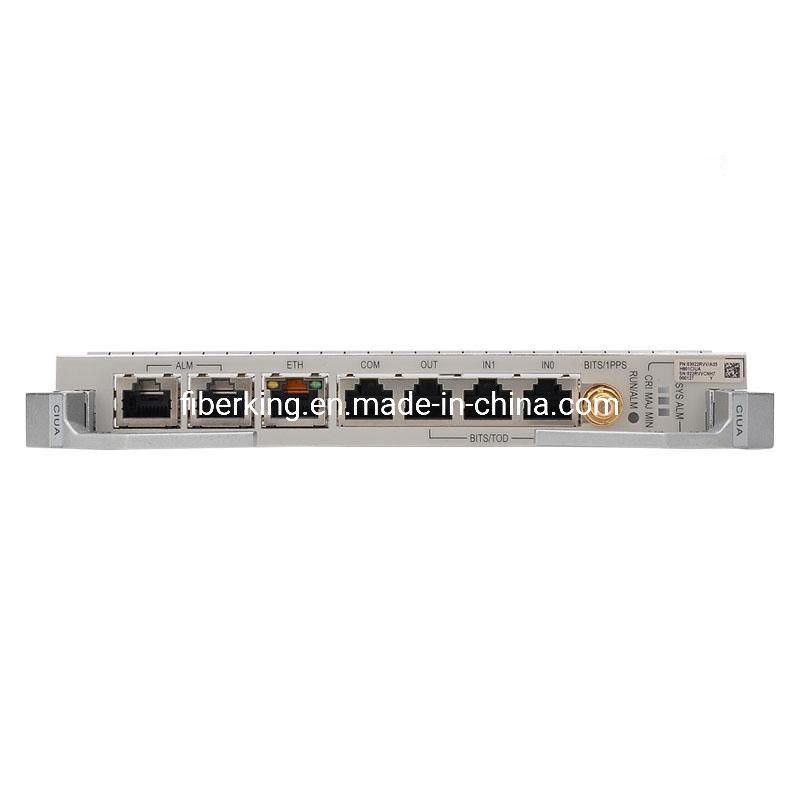

Front Panel Port

Indicator

Indicator

name

Status

Operation Description

RUN/ALM

Running status indicator

Green: blinks every 1s

The board works in the normal state

Green: blinks every 0.25s

The board is being registered

Red: on

The board is faulty

SYSALM: CRI, MAJ, MIN

Alarm indicators

CRI (red): on

The system has generated a critical alarm

MAJ (red): on

The system has generated a major alarm

MIN (red): on

The system has generated a minor alarm

ETH

Link/data status indicator

Green: on

The link is normal

Orange: blinks

Data is being transmitted

Green: off

No data is being transmitted

H901CIUA General Interface Board for Huawei Ma5800 Olt
H901CIUA General Interface Board for Huawei Ma5800 Olt
H901CIUA General Interface Board for Huawei Ma5800 Olt
H901CIUA General Interface Board for Huawei Ma5800 Olt
